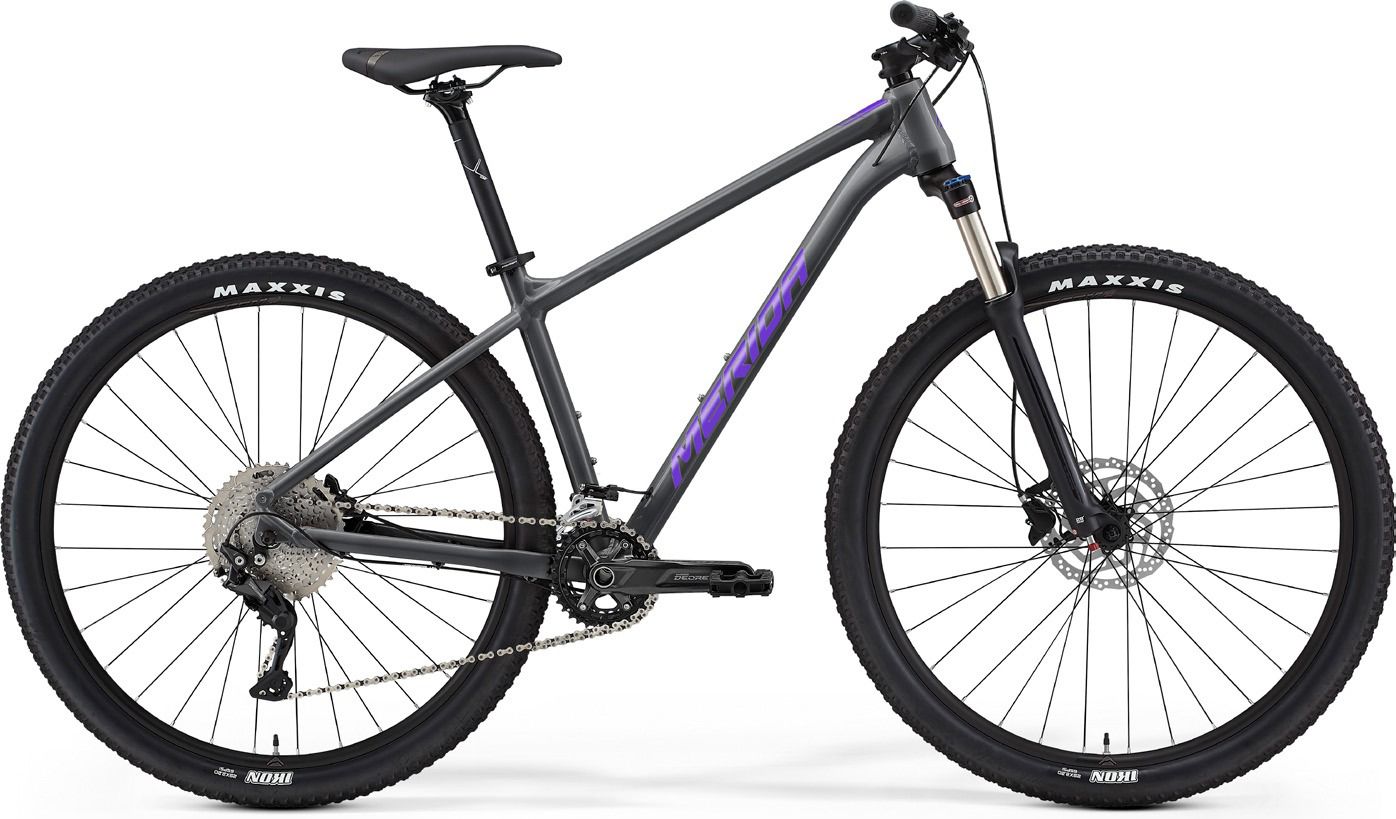

650b hardtail with sophisticated TFS aluminium frame, Shimano 1 x 8 drivetrain, SR Suntour lockout fork, hydraulic disc brakes, Shimano hubs, cassette, BB and chainset.
Meridas heartland has always been bombproof aluminium hardtails. Half a century of frame building experience counts for a lot. All Big Nine and Big Seven models use a sophisticated TFS frame featuring the latest technology: full internal cable routing for a clean, neat set up, tapered headtube offering the potential for future upgrades inboard disc brake mounts protect the brake and maximise stopping power.
As much Shimano componentry as possible has been added to complement the modern frame and enhance reliability. There are a wide range of sizes; Big Nine for taller riders and Big Seven for shorter riders with a healthy overlap between the two. For riders in the middle, riding style can be taken into account. If you are looking for speed and efficiency choose a Big Nine, if you are looking for agility choose a Big Seven.
Highlights:
Frame |
TFS IV - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.25" |
Fork |
SR Suntour XCT30 HLO; Coil; 100mm travel; Lockout; Max tyre size 27.5" x 2.25" |
Gears | 8 |
Shifters |
Shimano ESSA SL-315-8 |
Rear Derailleur | Shimano ESSA RD-U2000-8; GS |
Bottom Bracket | Shimano BB-UN101 73-123 |
Chain |
KMC Z8.3 |
Chainset | Shimano ESSA FC-U2001 32 tooth chainset; Aluminium; Crank length - 170mm (XS/S), 175mm (M/L) |
Cassette | Sunrace CS-HG400-8; 11-45 teeth; 8 speed |
Brake Lever |
Shimano MT200 |
Front Brake | Shimano BR-MT200; hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
Rear Brake | Shimano BR-MT200; hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
Grip |
Merida EC |
Handlebar | Merida CC; aluminium; 690mm wide; 15mm rise |
Stem | Merida CC; aluminium; 31.8mm diameter; 6 degree rise - Length - 70mm (XS-S), 90mm (M-L) |
Headset | Merida M2345 |
Pedal | VP Components VPE-891 |
Saddle |
Merida Sport comfort |
Seatpost | Merida CC; 30.9mm diameter; 15 mm layback; Aluminium |
Wheel Size | 27.5" |
Rims | Merida CC; 17mm inner rim width; aluminium |
Spokes | Black Steel |
Front Hub | Shimano TX505; 100 x 9mm; 32 spoke; Centerlock |
Rear Hub | Shimano TX505; 135 x 9mm; 32 spoke; Centerlock |
Front Tyre | Merida K1080; 27.5" x 2.2"; wire bead |
Rear Tyre | Merida K1080; 27.5" x 2.2"; wire bead |
