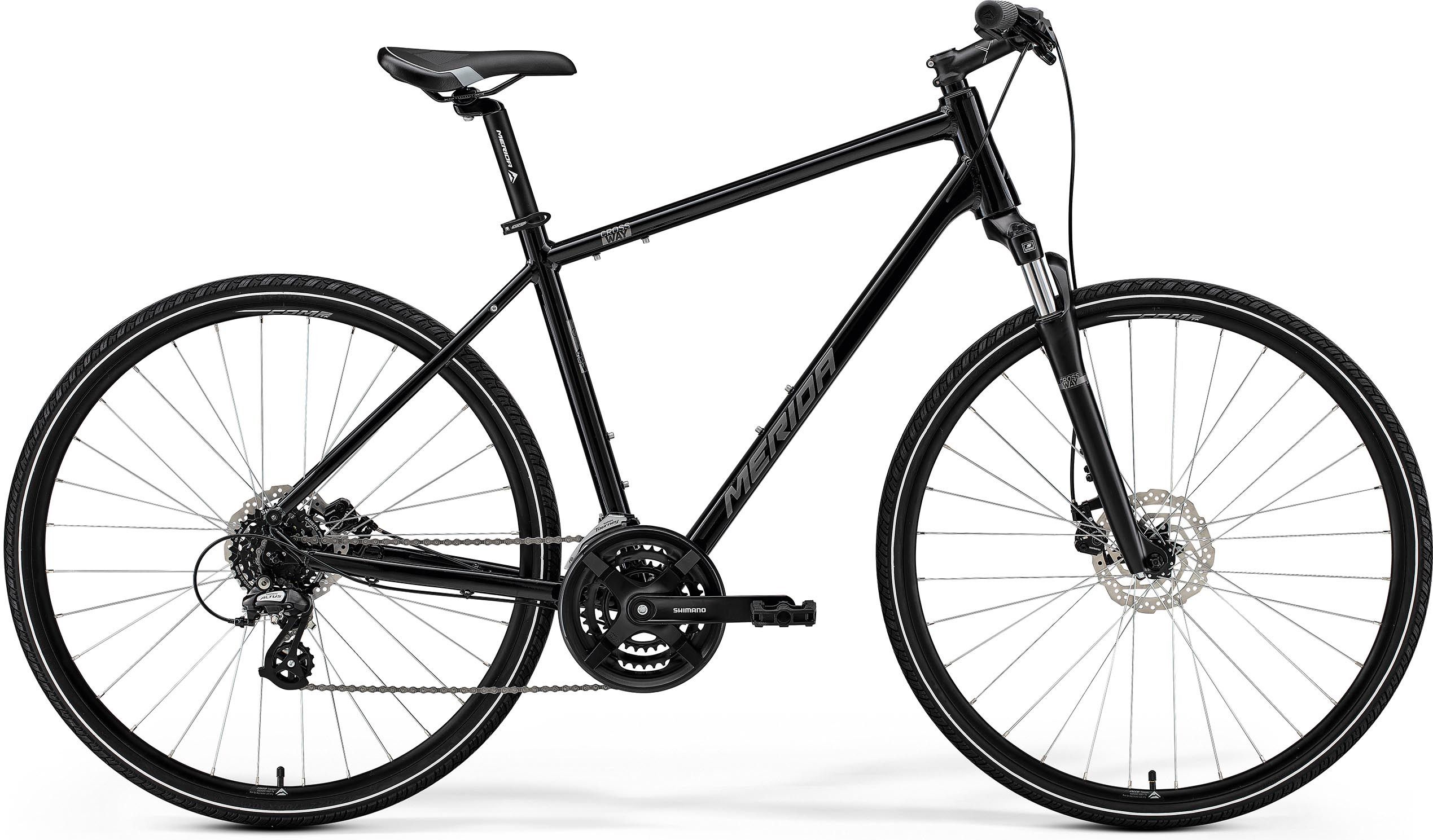

A perennial best seller, versatile hybrid with 21 gears, suspension fork and mechanical disc brakes. Shimano BB, chainset and hubs for greater longevity.
The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting. All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height. For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Highlights:
Frame |
TFS III - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
Fork |
SR Suntour NEX DS; Coil; 63mm travel; Max tyre size: 700x50C |
Gears | 21 |
Shifters |
Shimano ST-EF500 |
Front Derailleur | Shimano FD-TY510-3 |
Rear Derailleur | Shimano RD-M310-7 |
Bottom Bracket | Shimano BB-UN101 73-123 |
Chain | Sunrace CNM84 |
Chainset | Shimano TY301; 48-38-28 tooth chainset; Aluminium; Crank length - 170mm (XXS/SM), 175mm (ML and up) |
Cassette | Shimano CS-HG200-7; 12-32 teeth; 7 speed |
Brake Lever | Shimano ST-EF500 |
Front Brake | Shimano BR-M375 mechanical disc brake caliper with Shimano RT10; 160mm rotor |
Rear Brake | Shimano BR-M375 mechanical disc brake caliper with Shimano RT10; 160mm rotor |
Grip |
Merida EC |
Handlebar | Merida CC; steel; 620mm wide; 30mm rise |
Stem | Merida Comp TK; aluminium; 25.4mm diameter; 7 degree rise - Length - 100mm (all sizes) |
Headset | Merida M2345 |
Pedal | VP VPE-891 |
Saddle | Merida Cross Sport |
Seatpost | Merida CC; 30.9mm diameter; 15 mm layback; Aluminium |
Wheel Size | 700C |
Rims | Merida CC; 17mm inner rim width; Aluminium |
Spokes | Steel UCP |
Front Hub | Shimano TX505; 100 x 9mm; 32 spoke; Centerlock |
Rear Hub | Shimano TY505-7; 135 x 9mm; 32 spoke; Centerlock |
Front Tyre | Merida K1171; 700 x 40C; wire bead |
Rear Tyre | Merida K1171; 700x40C; wire bead |
Please be aware that the images and description above are usually supplied by the brand / manufacturer and are in no way affiliated with Cycle Centre Congleton Limited T/A CycleStore. Cycle Centre Congleton Limited T/A CycleStore only resell items from third parties and do not design or manufacture any products.
