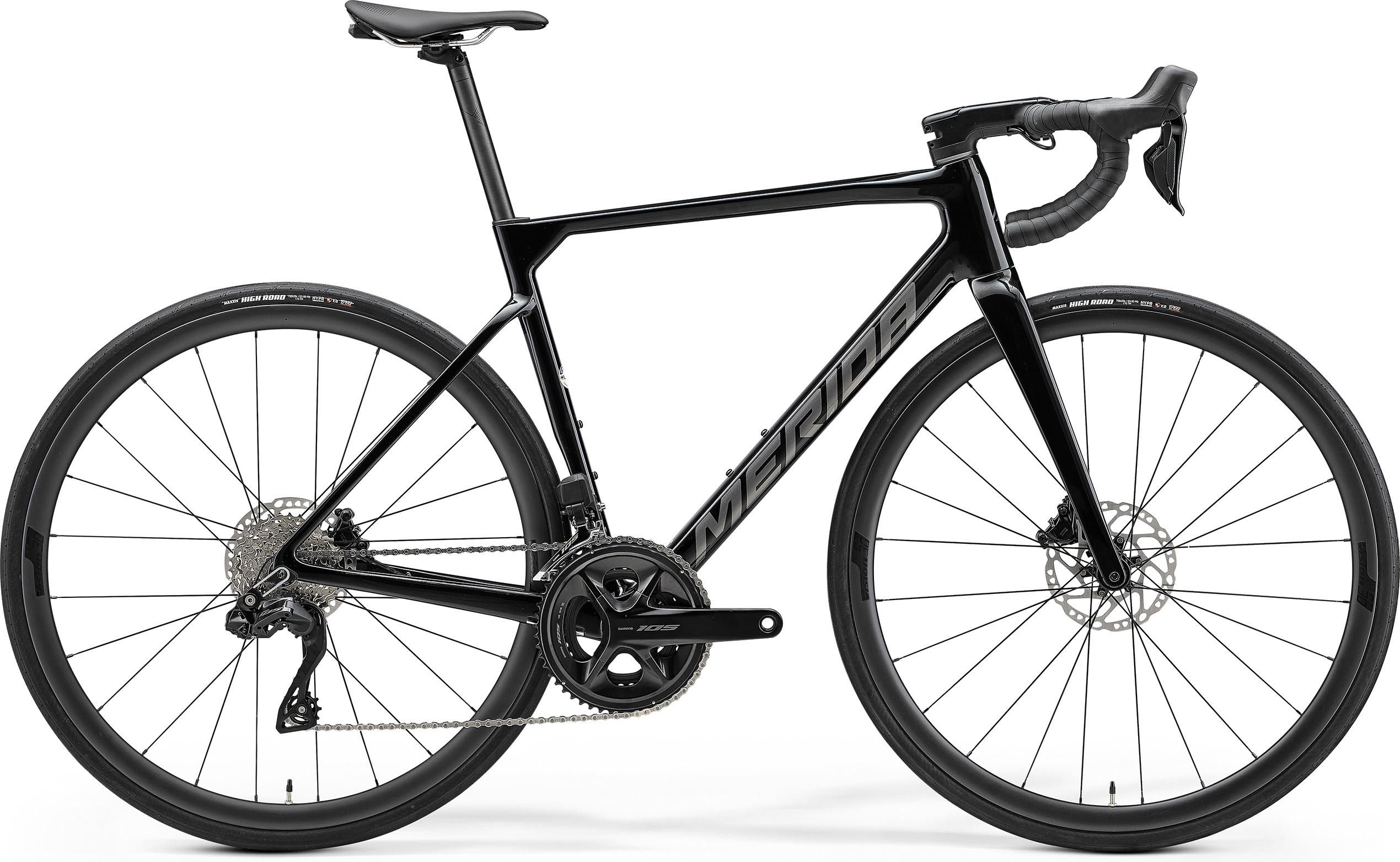

Carbon CF3 framed road bike with a full 24 speed Shimano 105 groupset with Di2 electronic shifting, Vision SC30 carbon wheelset, Shimano 105 hydraulic disc brakes and Maxxis 28c tyres
Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was even launched. Gen 5 keeps the Sculturas fabled lightweight, agility and rider comfort focus and even manages to improve on both measures. The Scultura now incorporates learnings from the Reacto in terms of aerodynamics; they now share the same race proven geometry.
Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made. The new Scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort. The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent. A couple of mountain top, grand tour stage victories underline that point quite well!
Highlights:
Frame |
CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2" to 1 1/4" headtube. Max tyre size - 30c |
Fork |
Scultura CF3 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology |
Gears | 24 |
Shifters |
Shimano 105 disc Di2 |
Front Derailleur | Shimano 105 Di2 |
Rear Derailleur | Shimano 105 Di2 |
Bottom Bracket | SM-BB71-41B, Pressfit 86.5 |
Chain | Shimano CN-M6100-12 |
Chainset | Shimano 105; FCR7100, 52-36 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL) |
Cassette | Shimano CS-R7101; 11-34 teeth; 12 speed |
Brake Lever | Shimano 105 |
Front Brake | Shimano 105; Hydraulic disc brake caliper with Shimano RT64; 160mm rotor |
Rear Brake | Shimano 105; Hydraulic disc brake caliper with Shimano RT64; 160mm rotor |
Grip |
Merida Expert |
Handlebar | Merida Expert SLII; aluminium; 380mm(XXS-XS-S), 400mm (M-L-XL) |
Stem | Merida Expert SL 2PII; aluminium; -9 degree rise -Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL) |
Headset | Merida Team SL (OP-203 neck) |
Pedal | Not Included |
Saddle | Merida Expert SL; V-mount; including Merida minitool |
Seatpost | Merida Expert CC; 27.2mm diameter; 15mm layback; Carbon |
Wheel Size | 700C |
Rims | Vision SC30 DB; 19mm inner rim width; 33mm rim depth; carbon |
Spokes | Part of wheelset |
Front Hub | Vision SC30 DB; 100 x 12mm; Centerlock |
Rear Hub | Vision SC30 DB; 142 x 12mm; Centerlock |
Front Tyre | Maxxis Highroad; 700 x 28C; Kevlar bead; tubeless ready |
Rear Tyre | Maxxis Highroad; 700 x 28C; Kevlar bead; tubeless ready |
